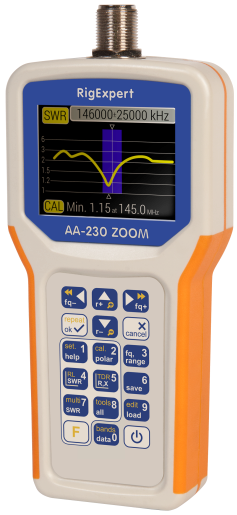

RigExpert AA-230 ZOOM - Antenna and Cable Analyzer 100 kHz to 230 MHz

10 900грн

RigExpert AA-230 ZOOM - Antenna and Cable Analyzer 100 kHz to 230 MHz - Информация

The analyzer is designed for measuring SWR (Standing Wave Ratio), Return Loss, Cable Loss, of cable and antenna systems from 100 kHz to 230 MHz.

A built-in ZOOM capability makes graphical measurements especially effective.

An integrated Time Domain Reflectometer mode can be used to locate the precise location of a fault within the feedline system.

The following tasks are easily accomplished by using this analyzer:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
  • Making coaxial stubs or measuring their parameters
  • Cable testing and fault location, measuring cable loss and characteristic impedance
  • Measuring capacitance or inductance of reactive loads

RigExpert AA-230 ZOOM

Specifications

Frequency range: 0.1 to 230 MHz


Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75 and 100-Ohm systems

SWR measurement range: 1 to 100 in numerical mode,
                          1 to 10 in graph mode

SWR display: numerical or analog indicator

R and X range: 0…10000, -10000…10000 in numerical mode,
            0…1000, -1000…1000 in graph mode

Display modes:

-    SWR at single or multiple frequencies
-    SWR, return loss, R, X, Z, L, C at single frequency
-    SWR chart, 20 to 500 points
-    R, X chart, 20 to 500 points
-    Smith chart, 20 to 500 points
-    Return loss chart, 20 to 500 points
-    TDR (Time Domain Reflectometer) chart
-    Cable tools (loss and characteristic impedance)

Optional open-short-load calibration.

RF output:

-    Connector type: N
-    Output signal shape: square
-    Output power: -10 dBm (at 50 Ohm load)

Power:

-    Four 1.5V alkaline batteries, type AAA
-    Four 1.2V Ni-MH batteries, type AAA *
-    Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
-    When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:

-    290x220 color TFT display
-    6x3 keys on the water-proof keypad
-    Multilingual menus and help screens
-    USB connection to a personal computer

Dimensions: 82 mm x 182 mm x 32 mm (3.2 in x 7.2 in x 1.3 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 236 g (8.32 oz)

Warranty: 2 years
RigExpert AA-230 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.

RigExpert AA-230 ZOOM

How it works?


Structure diagram

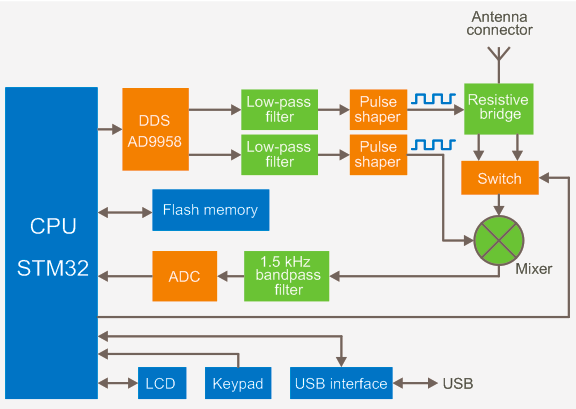

The structure diagram of RigExpert AA-230 ZOOM is located below:



The "brain" of the analyzer is STM 32-bit RISC microcontroller. It controls a AD9958 DDS chip running at 500 MHz and generating two sinusoidal signals. Both signals are low-pass filtered and then put through pulse shapers, producing two square signals with LVDS levels. Resistive brigde was chosen to measure parameters of a load because of its simplicity and good frequency response. The switch commutates two outputs of the bridge. After the switch, the signal is mixed with the second channel output to produce audio frequency of 1.5 kHz.This signal is then filtered and fed through the 16-bit ADC to the microcontroller. The 290x220 color TFT display and the 6x3 keys keypad are connected directly to the CPU. The analyzer is equipped with 4 Mbytes of external Flash memory to store measurement results. The USB interface chip allows connecting the analyzer to the PC.


Close look at the bridge

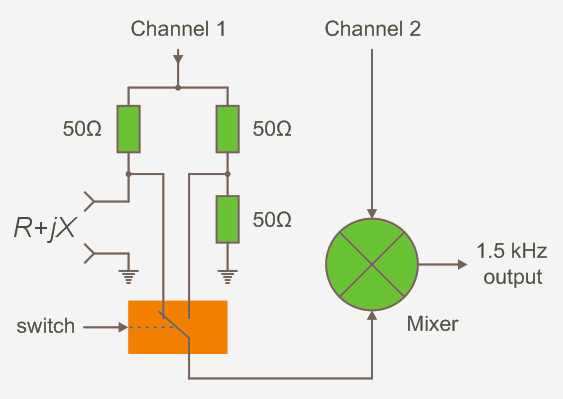

This is a diagram of the resistive bridge and its connection to the mixer:



The switch which is controlled by the CPU feeds the signal from the certain side of the bridge to the mixer chip. When the load is totally active and its resistance is 50 Ω, the bridge is balanced and the switch outputs the same signal in both positions. This eliminates the need of calibration of the analyzer, also giving very good precision near SWR=1.
